Description

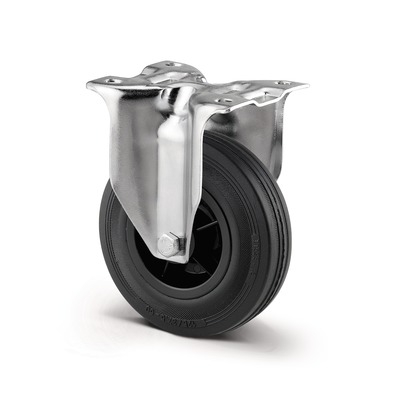

.Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing.
Technical Data
| Wheel diameter | 100 mm |
| Width of Tread | 35 mm |
| Size of Plate | 103 x 85 mm |
| Plate hole centres | 80/77 x 60 mm |
| Plate hole | 9 mm |
| Overall height | 128 mm |
| Load capacity | 75 kg |
| Temperature | - 20 / + 60 °C |
| Standard | EN 12532 |
| Weight | 1 kg |
| Hardness of tread | A 85 Shore |
| Stainless | No |
| Electrical conductivity | No |
| Housing | Fixed Castors |
