Description

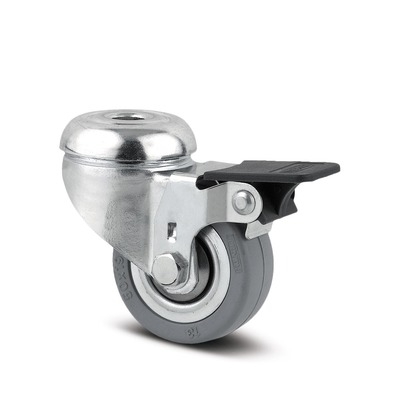

Swivel castor with wheel brake, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of pressed steel, Tread: solid rubber, grey non-marking, with threadguards, cone ball bearing.
Technical Data
| Wheel diameter | 50 mm |
| Width of Tread | 19 mm |
| Size of Plate | 60 x 60 mm |
| Plate hole centres | 48/38 x 48/38 mm |
| Plate hole | 6,3 mm |
| Offset | 24 mm |
| Overall height | 69 mm |
| Load capacity | 40 kg |
| Temperature | - 20 / + 85 °C |
| Standard | EN 12530 |
| Weight | 0.258 kg |
| Hardness of tread | A 80 Shore |
| Stainless | No |
| Electrical conductivity | No |
| Housing | Swivel Castors with wheel brake |
